| Data sheet | |
|
Bearing numbering |

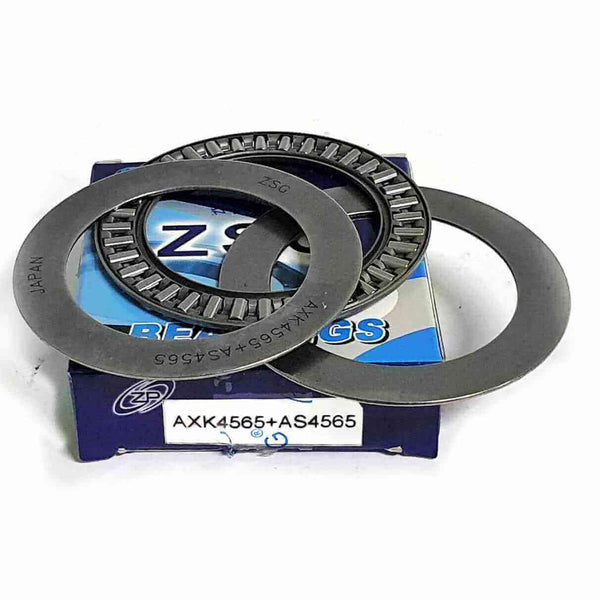

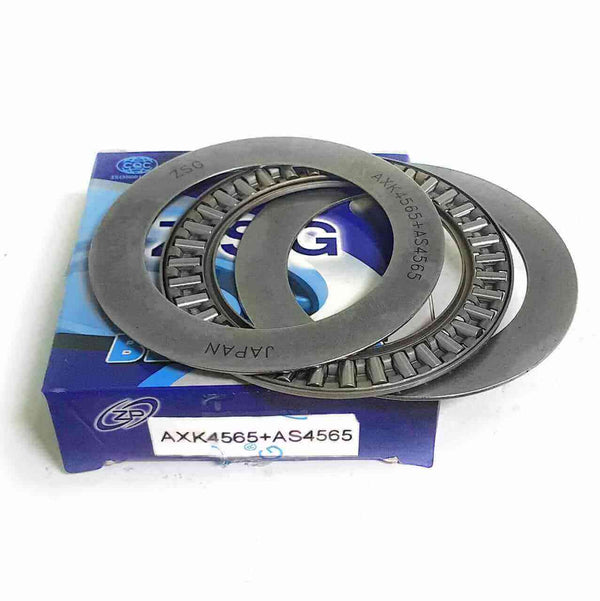

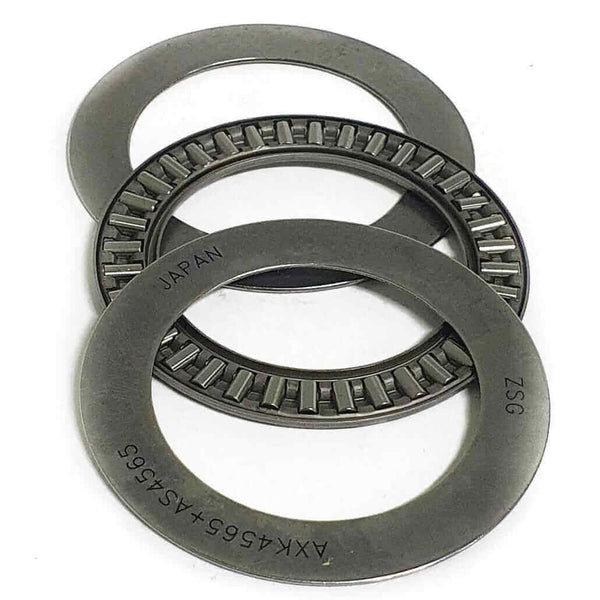

AXK 4565 / AS 4565 |
| BEARING DETAILS | |
| Internal diameter (d) |
45 mm |
| External diameter (D) |
65 mm |
| Height (Dw) |
3 mm |
| Nearest part of the needle to the center (Ea) min | 50 mm |
| Part furthest from needle to center (Eb) max |
63 mm |
|
LOADING CAPACITY |
- |
| Basic dynamic load capacity |
30,000 N ≈ 30 qq |
|
Loading capacity Basic statics |
128,000 N ≈ 128.0 qq |
| Fatigue Limit Capacity |
|
| VELOCITY | |
| Reference speed | 2,170 rpm |
|
Speed limit |
5,200 rpm |
| TRACK DETAILS | |
| Internal diameter (d) | 45 mm |
| External diameter (D) | 65 mm |
| Height per track (B) | 1 mm |
About:
The series of axially loaded needle roller bearings with metal washers come (unlike other types of bearings) separated, so that when one is ruined, only the bearing or the washers are exchanged. Thanks to their compact size, these are ideal for supporting shafts in tight spaces.
Applications:
-Axial needle load bearings are ideal for use in motor rudders, rotary tables, turning tables, among others.
Lubrication:
Use special grease for bearings, and that this is according to the temperature at which the piece is going to work. It is recommended to follow the instructions of the machine, and to use the type of grease that you request.
Note:
When mounting, ensure that both the upper and lower race are not damaged, as this can reduce the life of the bearing. It is recommended that this run on a contaminant-free hardened steel track, so that it lasts longer.
