Datasheet

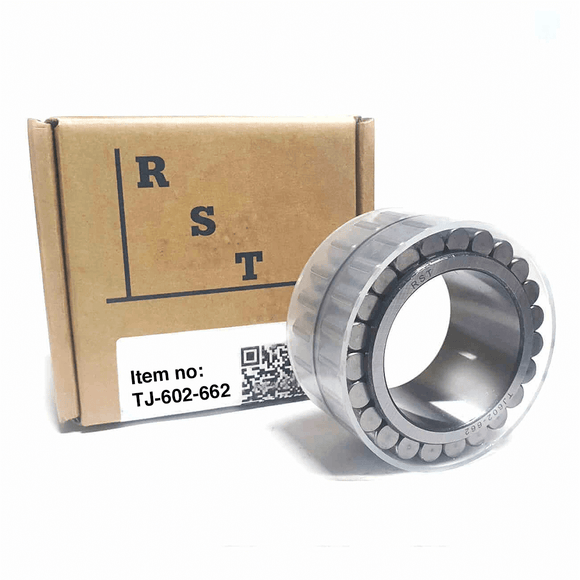

| Bearing no. | TJ602-662 |
| Inner diameter ( d ) | 50 mm |
| Inner roller diameter ( J ) | 57.25 mm |
| Outer roller diameter ( Dr ) | 75.25 mm |
| Roller height ( X ) | 35 mm |
| Total height ( B ) | 40 mm |
| Roller lenght ( L ) | 14 mm |
| Roller diameters( dr ) | 9 mm |
| Bearing material | Tempered steel |
About:

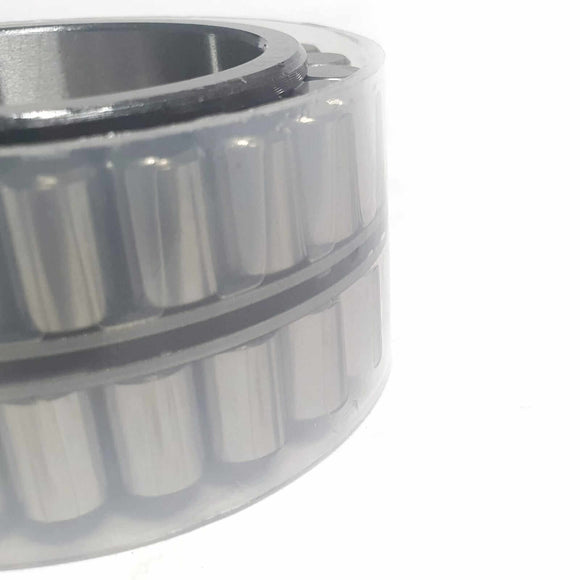

Cylindrical double row roller bearings are designed for machinery, when the double way angular contact is needed, witouth leaving the high strength, high load capacity, and high pressure. Thanks to the huge amount of rollers on the bearing, its load capacity is hight, allowing a greater load distribution.
Applications:
This type of bearings are used in a huge amount of equipments. for example:
- Industrial minery
- Builders
- Machinery factories
- wind motors
- Tool machinery
- motor gear
- water pumps
- molding inyection
- Compressor
- Rails
Lubrication:
This bearings have a rail for an optimized lubrication, the one you can access from the outer ring. lubricate it with grease or oil.
Montage:
Before start, make sure than the piece is clean and the surface when the bearing will work for a long term live. Avoid the direct application with the bearing. Once the piece is clean, and ready for installation, proceed to incert slowly the bearing, pressing it from the center as align as possible. CAUTION! : rollers may flip out the bearing if you are not taking your time. Make sure than is property aligned, for a correct installation.
ntes de proceder con el montaje, asegúrese de la limpieza de las superficies de apoyo asi como de su planitúd, exigencias necesaria para obtener las exigencias de higiene óptimas. Evite el contacto directo con el rodamiento. Una vez la pieza este desinfectada y lista para aplicarse, proceda a insertar el rodamiento en esta. PRECAUCIÓN: Los rodillos pueden salir del rodamiento, provocando que estos se pierdan. a la hora de colocar el rodamiento sobre la pieza donde se va a colocar, procure que este se encuentre debidamente alineado, para garantizar su instalación correctamente.
